Riviera Scooter

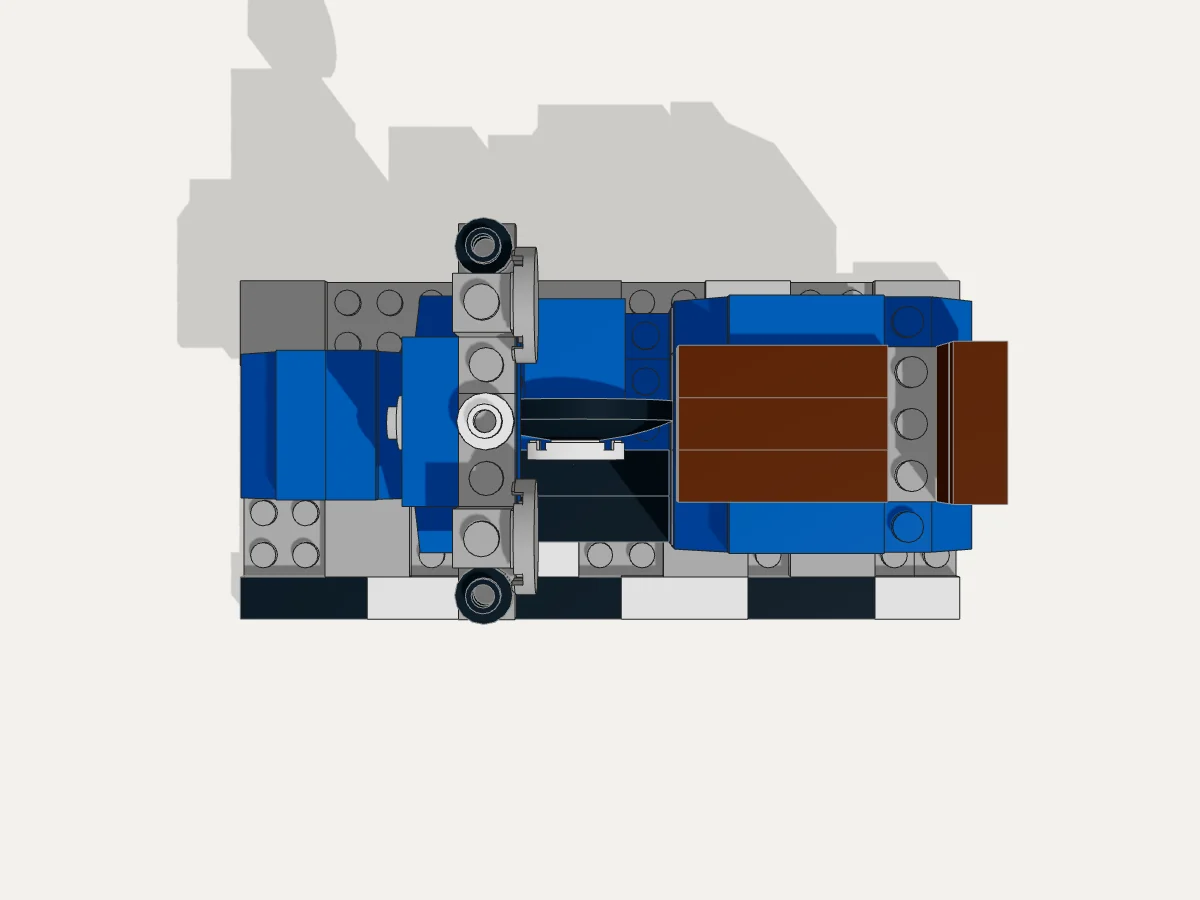

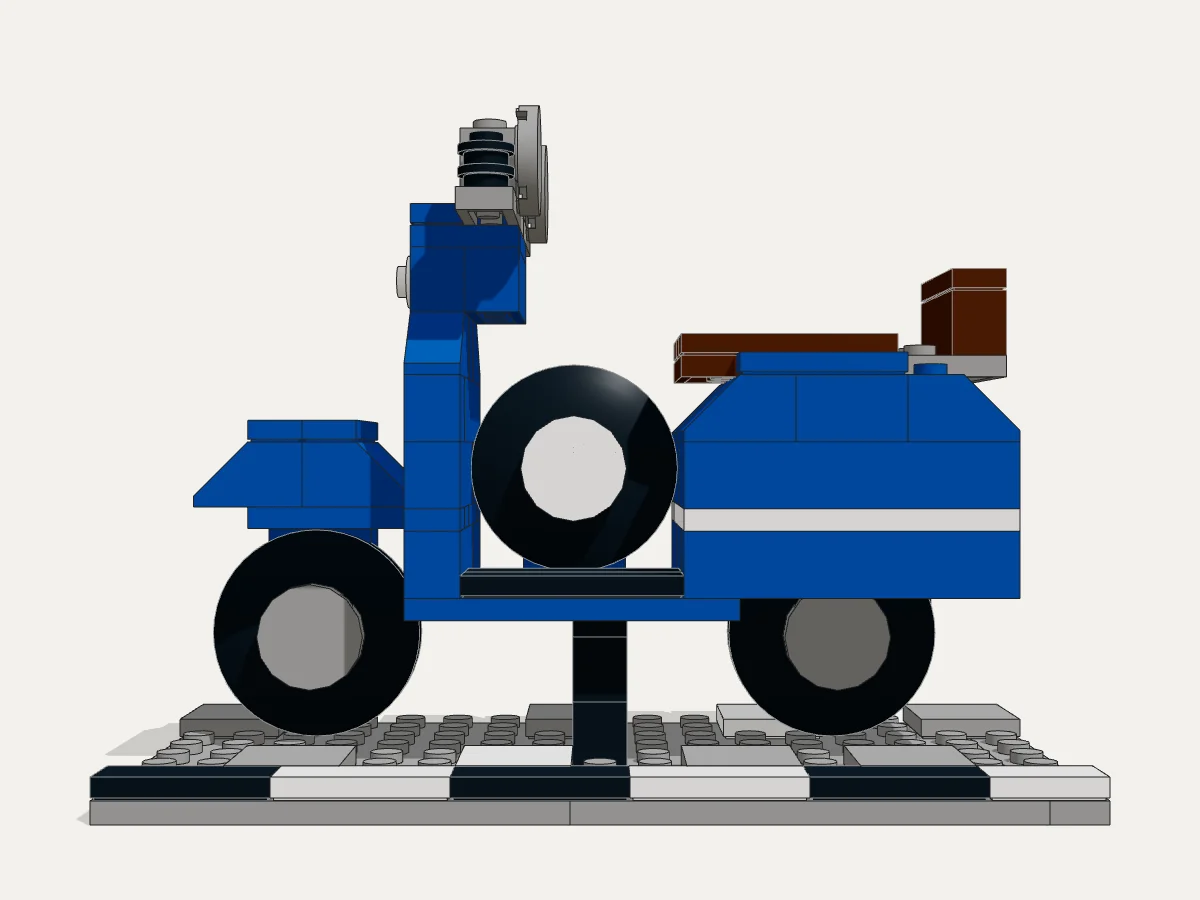

A classic Italian scooter on its center stand, parked on a sidewalk with a black-and-white painted curb. The model reads best from the side: at the front there is a small wheel with a round fender, an upright front shield, and a handlebar head with a headlight and mirrors on top. In the middle there is a low footboard, with a spare wheel standing upright between the two footrests. At the back there are curved side panels with a white stripe, a seat that extends forward, a luggage rack, and a small leather bag.
Dimensions
- Base: 17 × 8 studs, about 13.6 × 6.4 cm.
- Scooter: 15 studs long (about 12 cm), 5 studs wide at the body (7 studs with the handlebar and mirrors, about 5.6 cm).
- Total height including the mirrors is about 9.7 cm.
Color palette (5 colors)
- Blue: body
- White: body stripe, spare wheel rim, headlight lens, speedometer, curb stones
- Black: tires, center stand, floor mat strips, hand grips, curb stones
- Brown: seat and luggage bag
- Light Gray: rims, handlebar, mirrors, luggage rack, sidewalk
Assembly notes

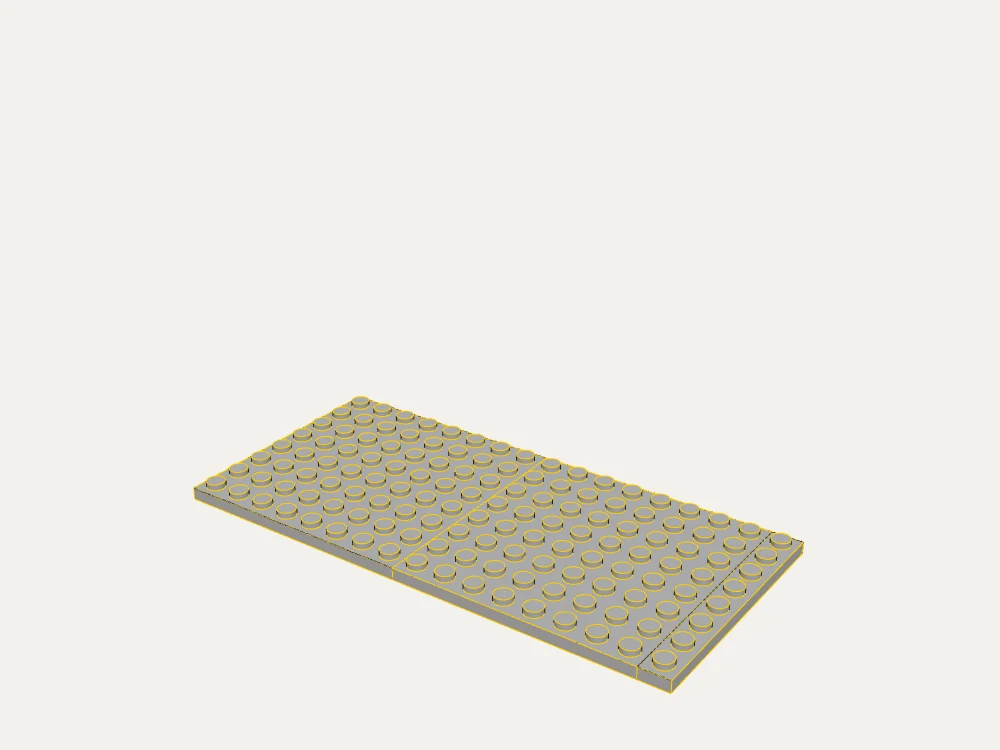

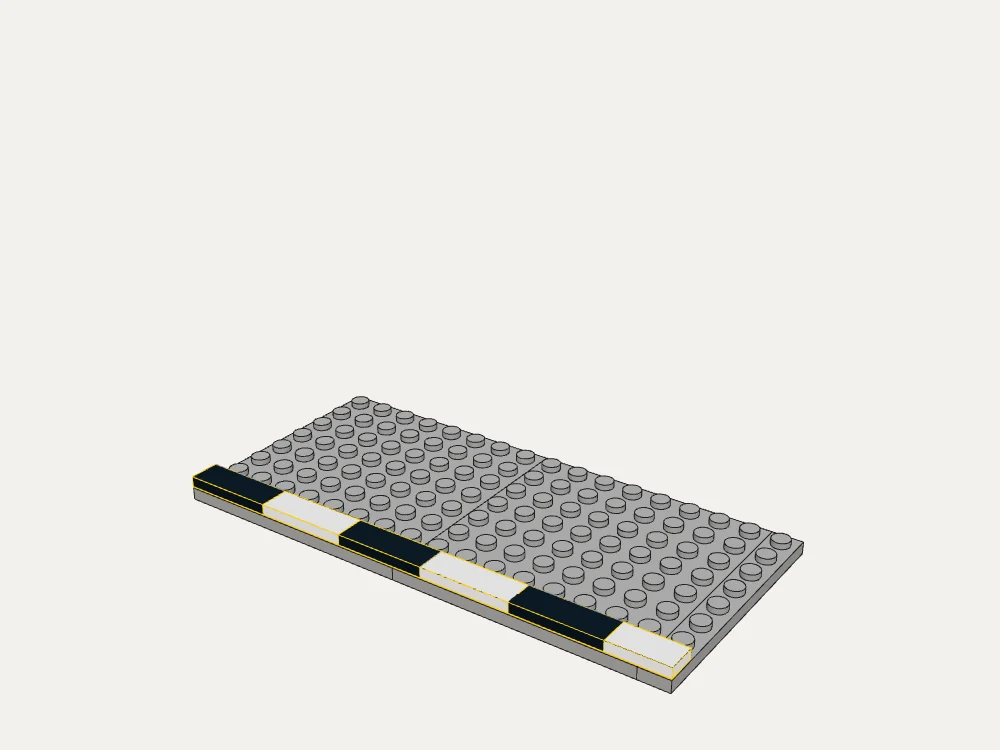

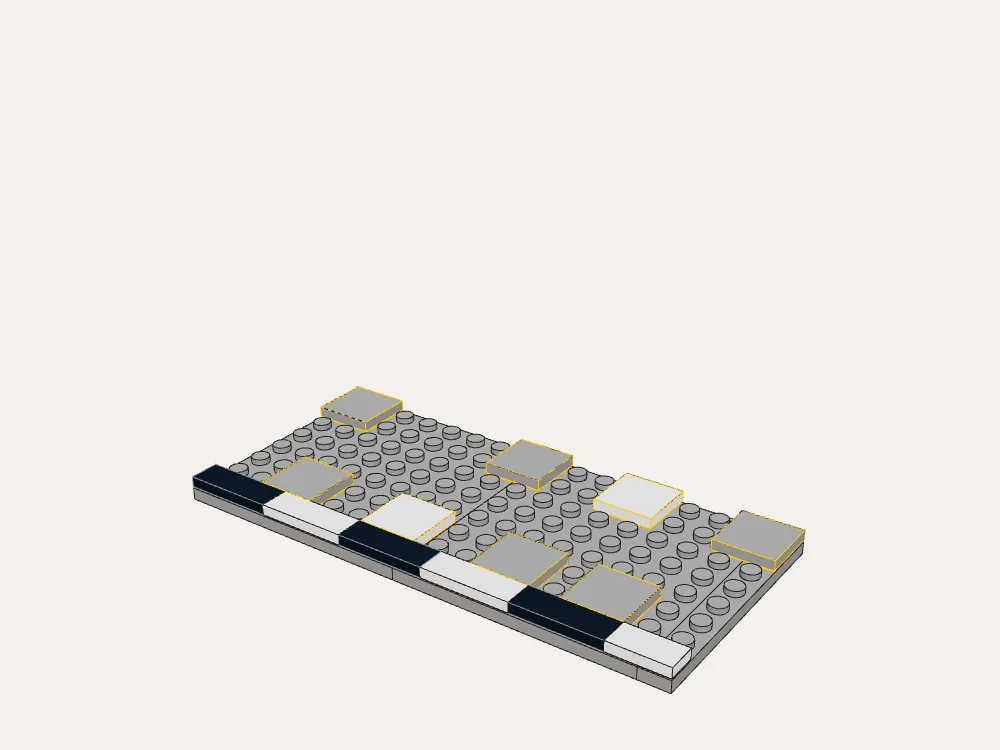

- Base: place the two 8×8 plates and the 1×8 plate side by side. First attach the curb row, then the tiles; these lock the plate joints. The undersides of the stand and wheels are left with studs exposed.

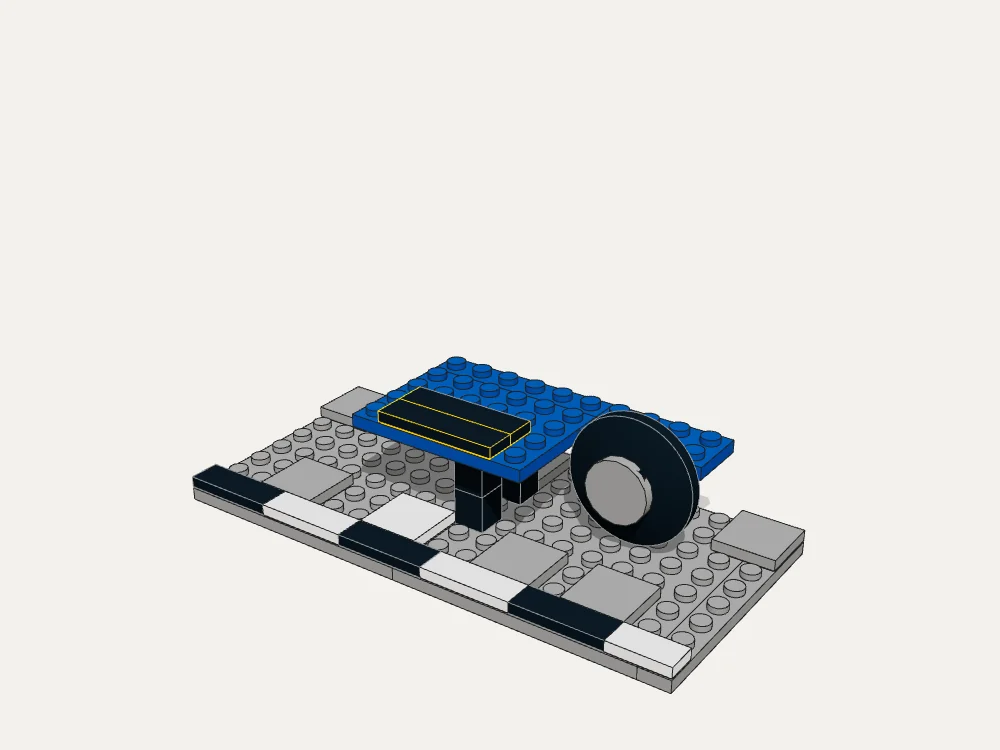

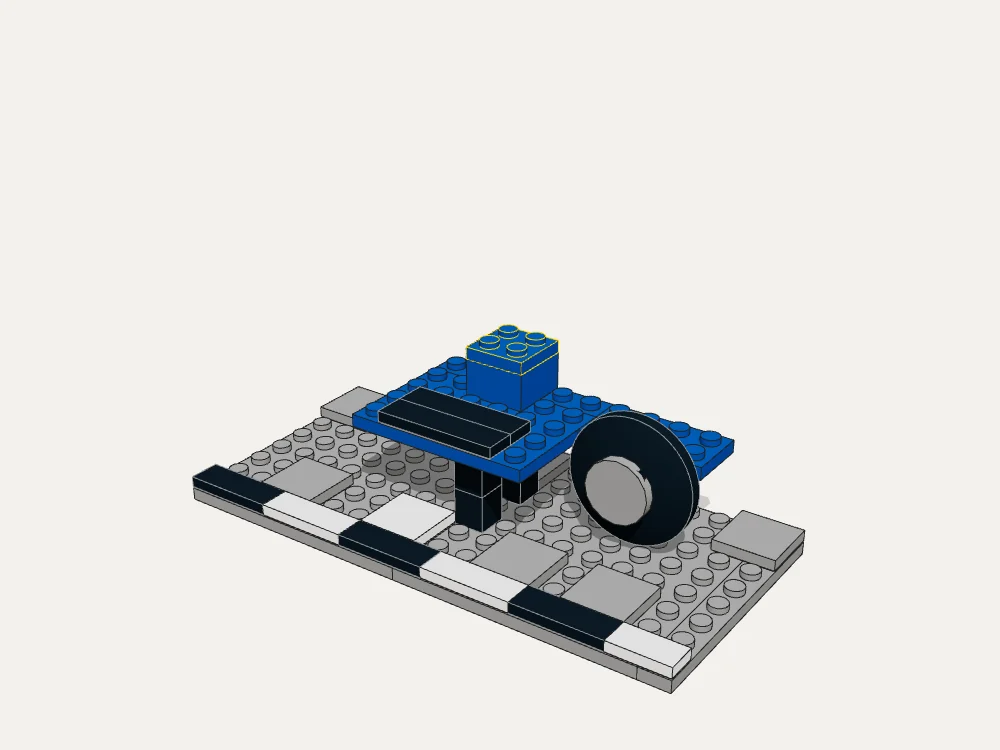

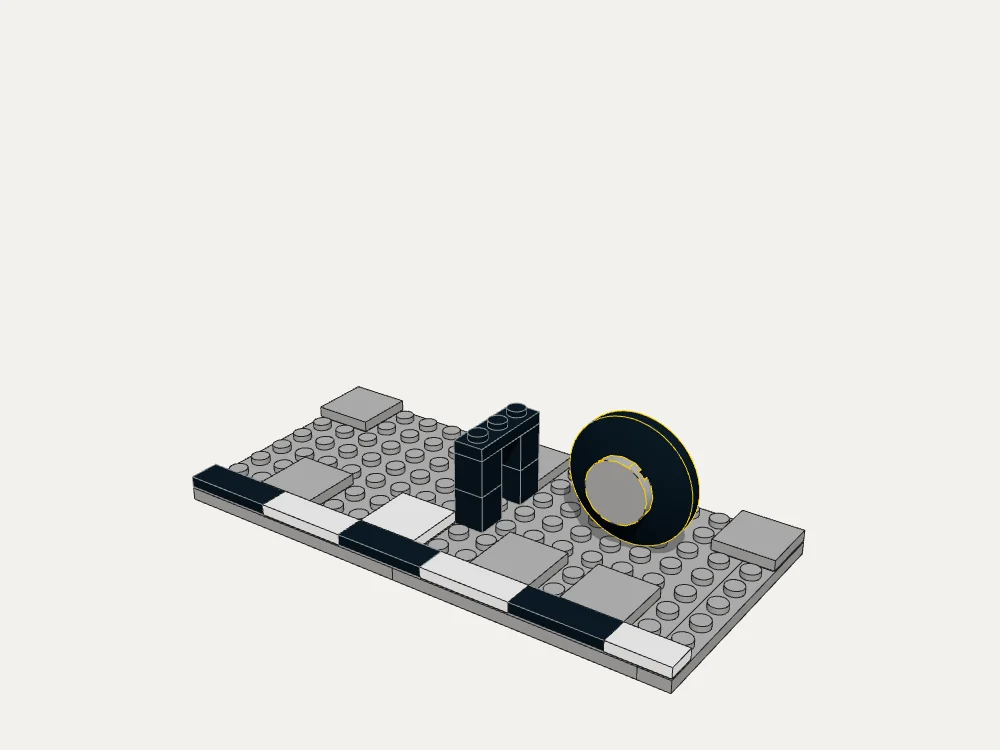

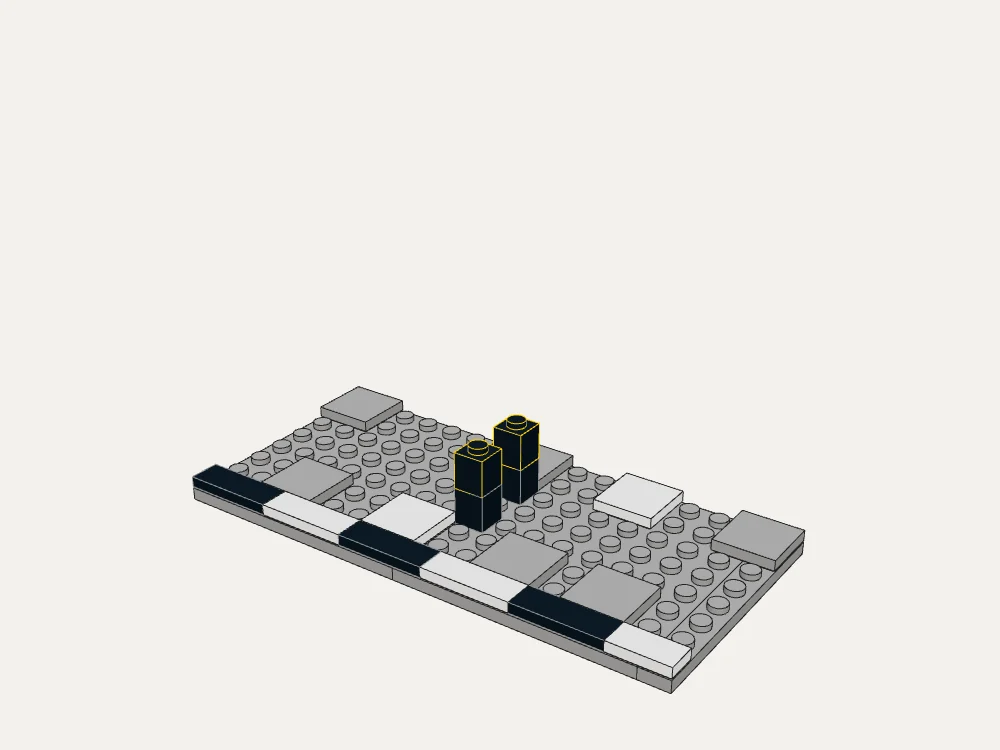

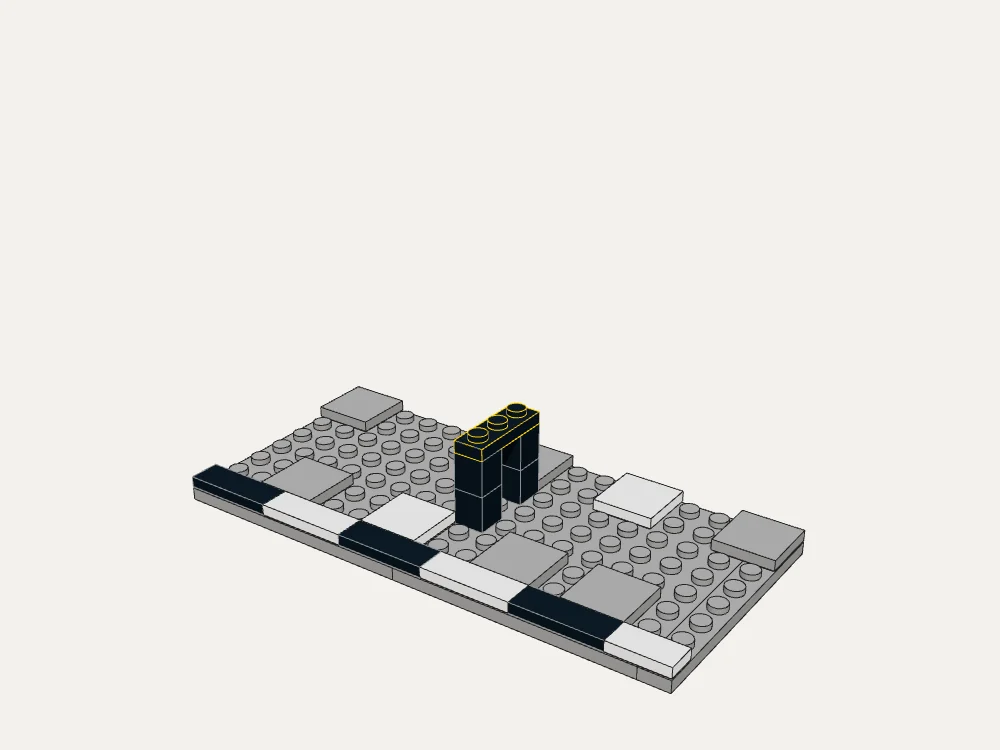

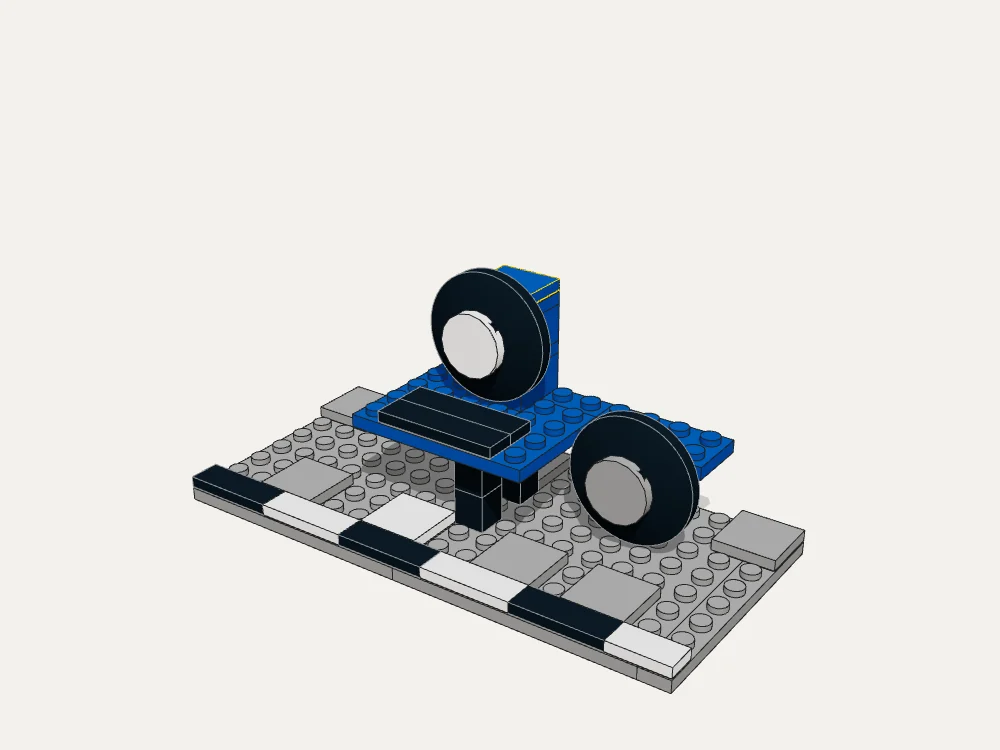

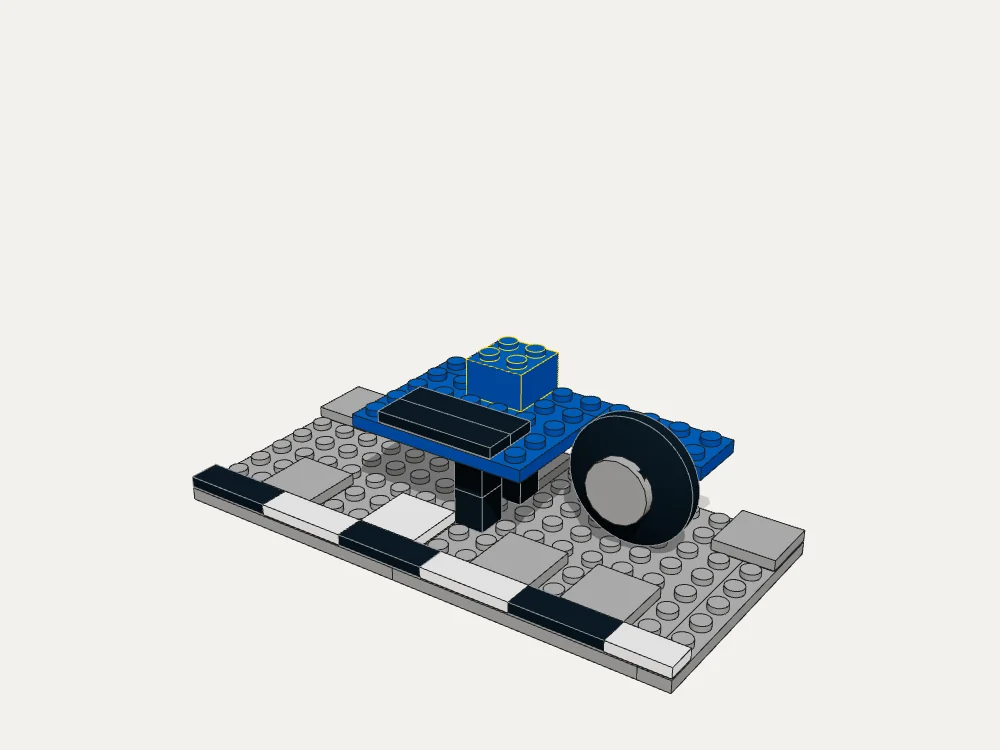

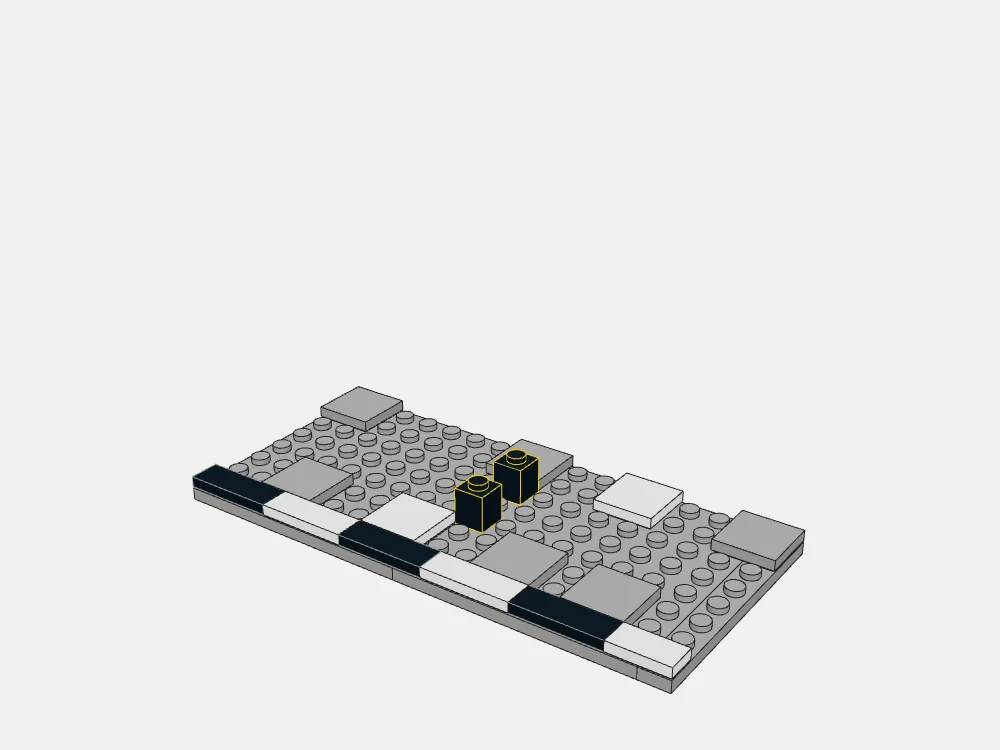

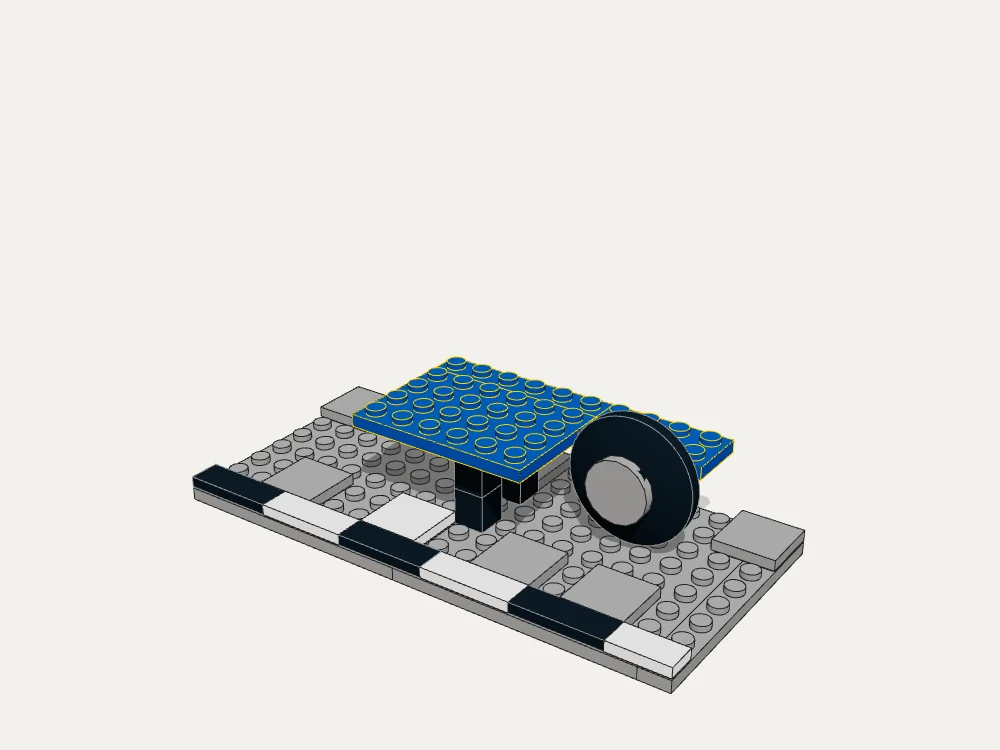

- Chassis: stack the two 1×1 legs of the stand two layers high and cover them with a 1×3 plate. Attach the rear wheel's side-stud brick under the rear floor plate (2×4), and fit the dish and rim onto the side stud. Then seat the footboard plates on the stand.

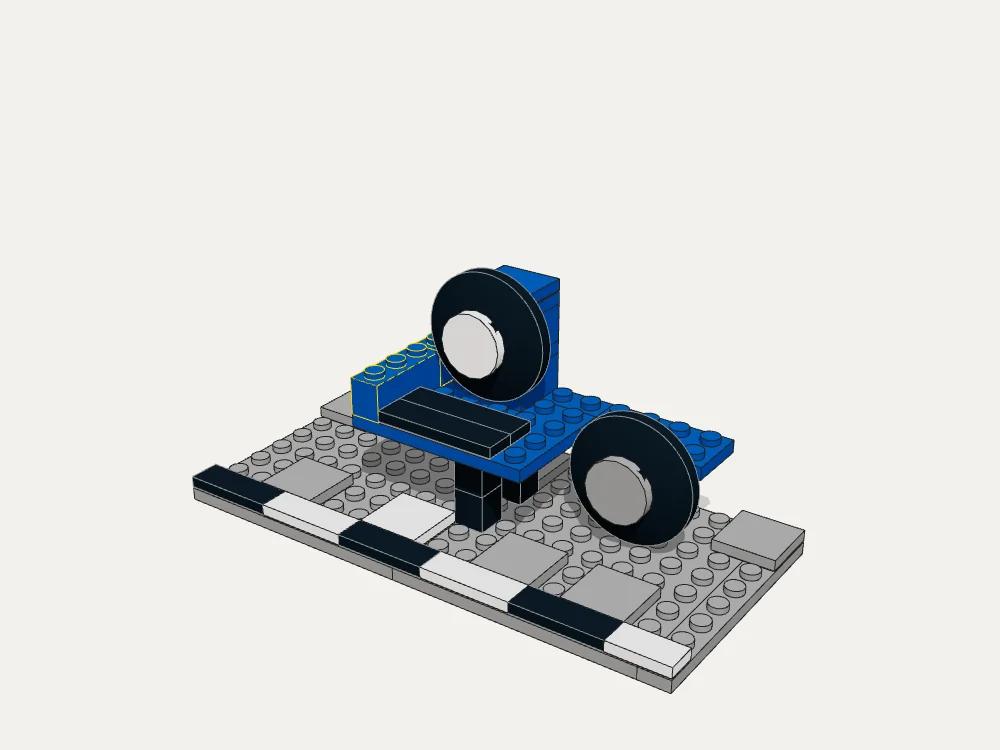

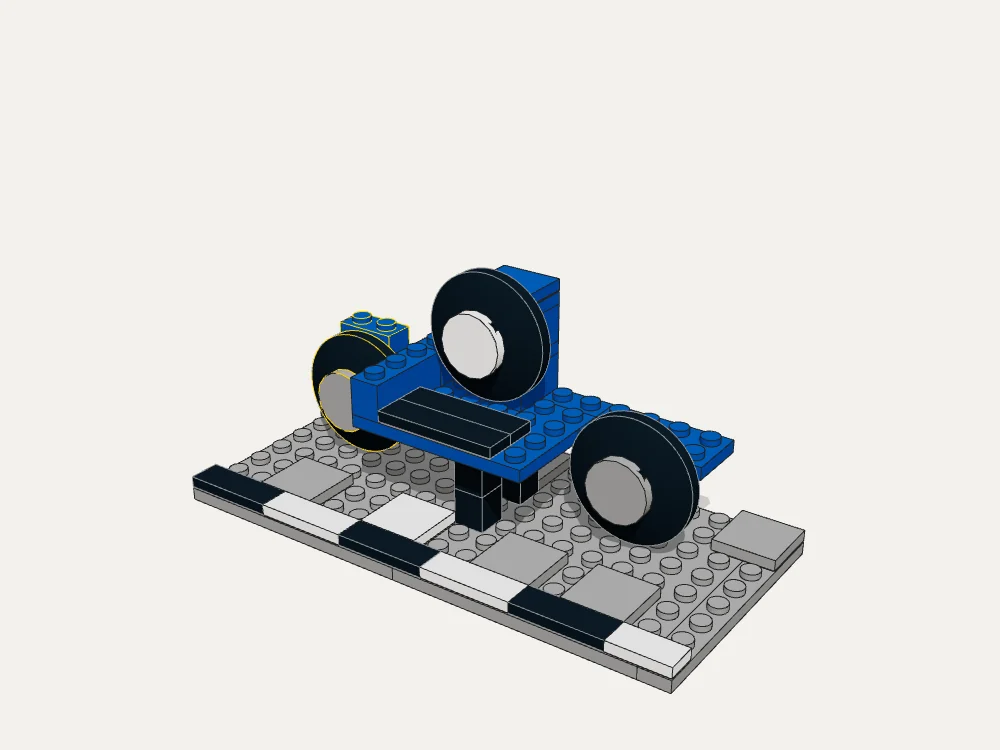

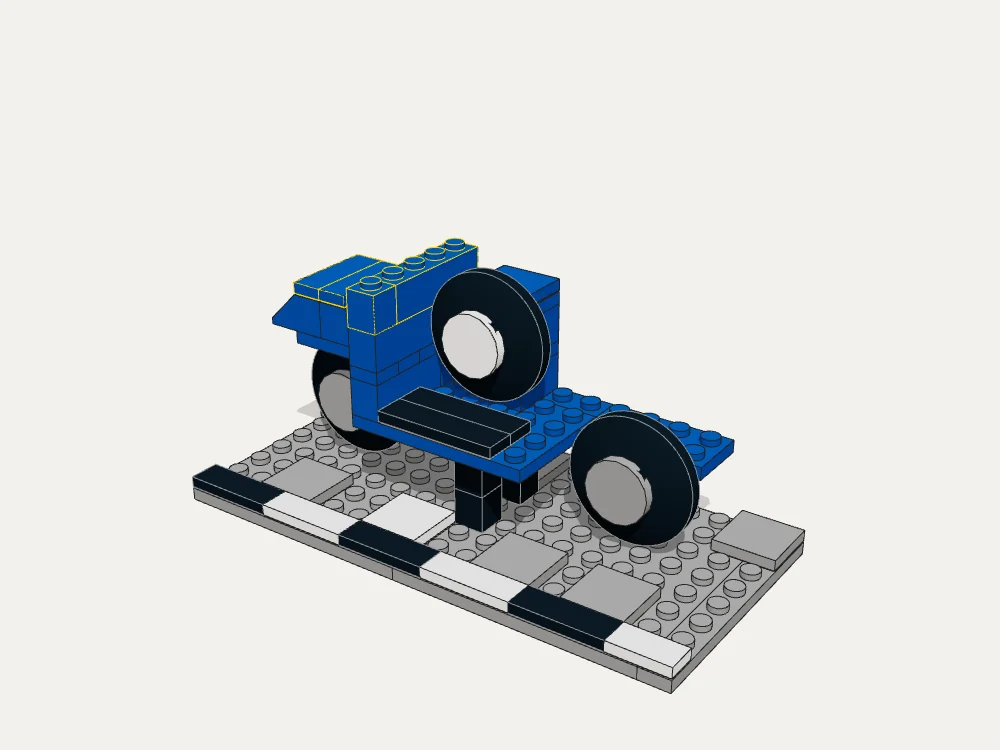

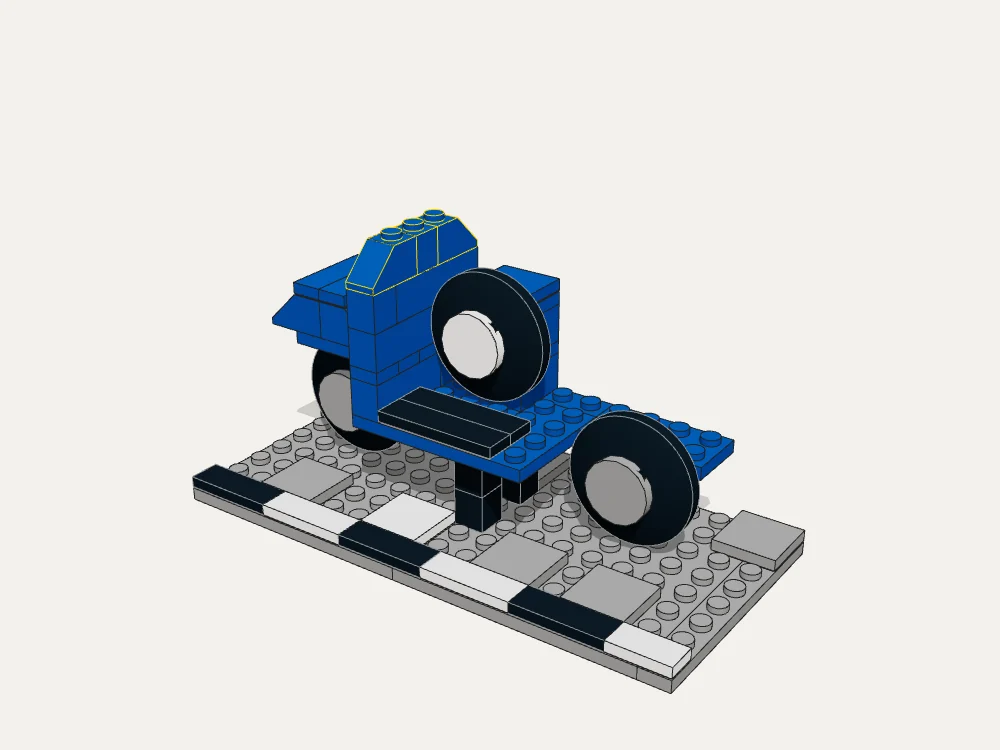

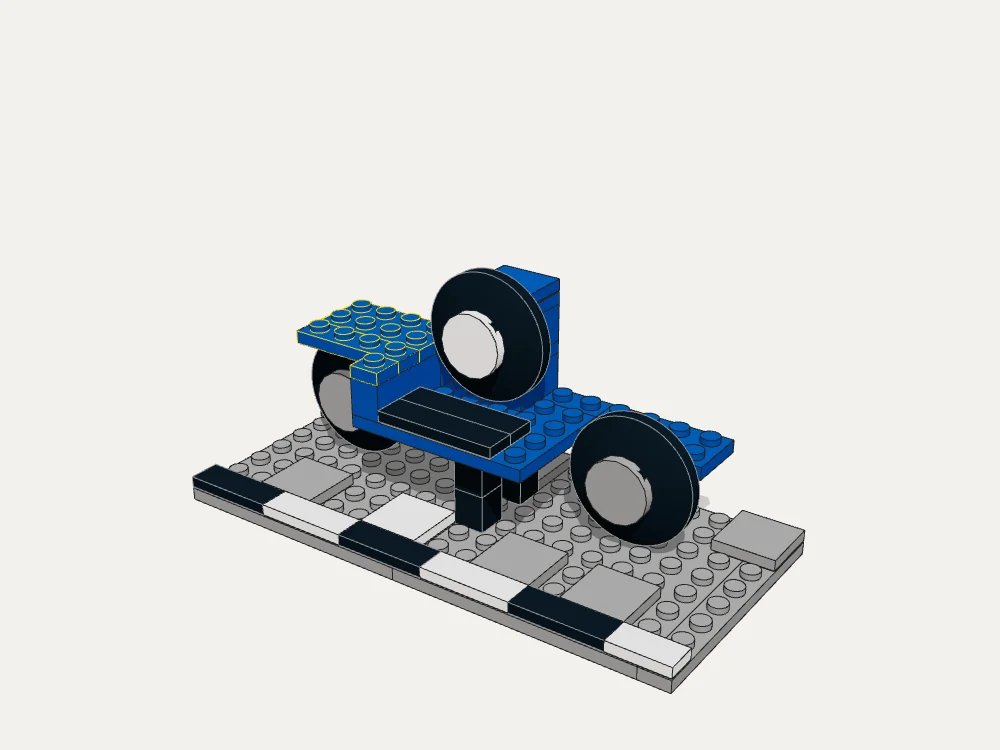

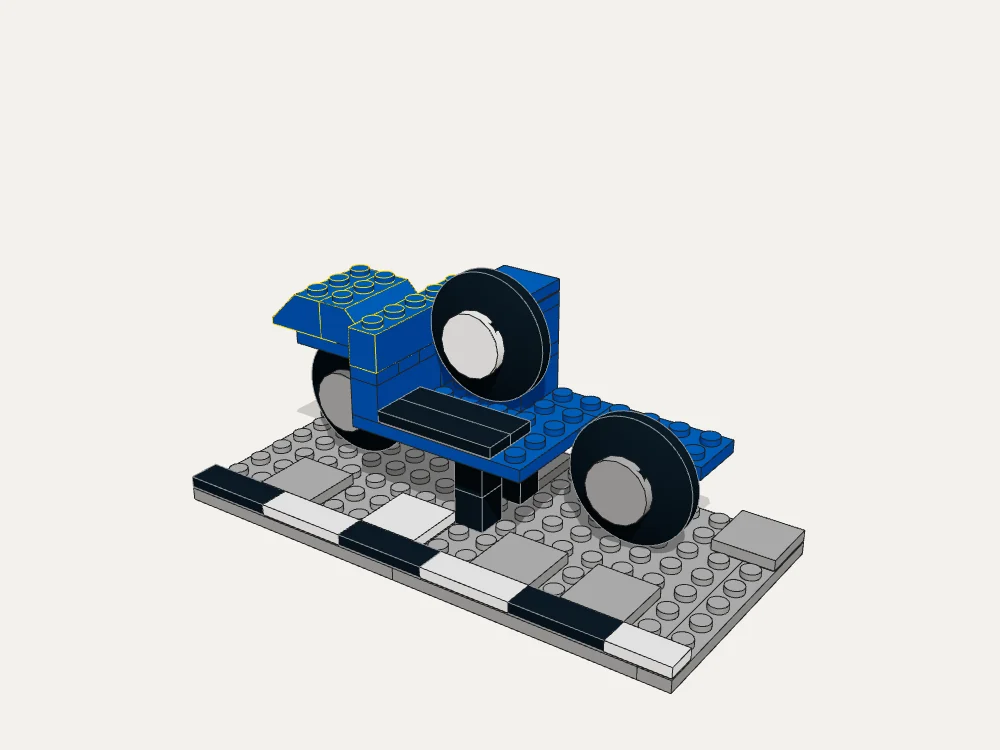

- Front shield: first build the fork column (side-stud brick, 1×2 plate, 1×2 brick) and the front wheel, then attach them under the fender arm. The arm is clamped between the first and third rows of the shield.

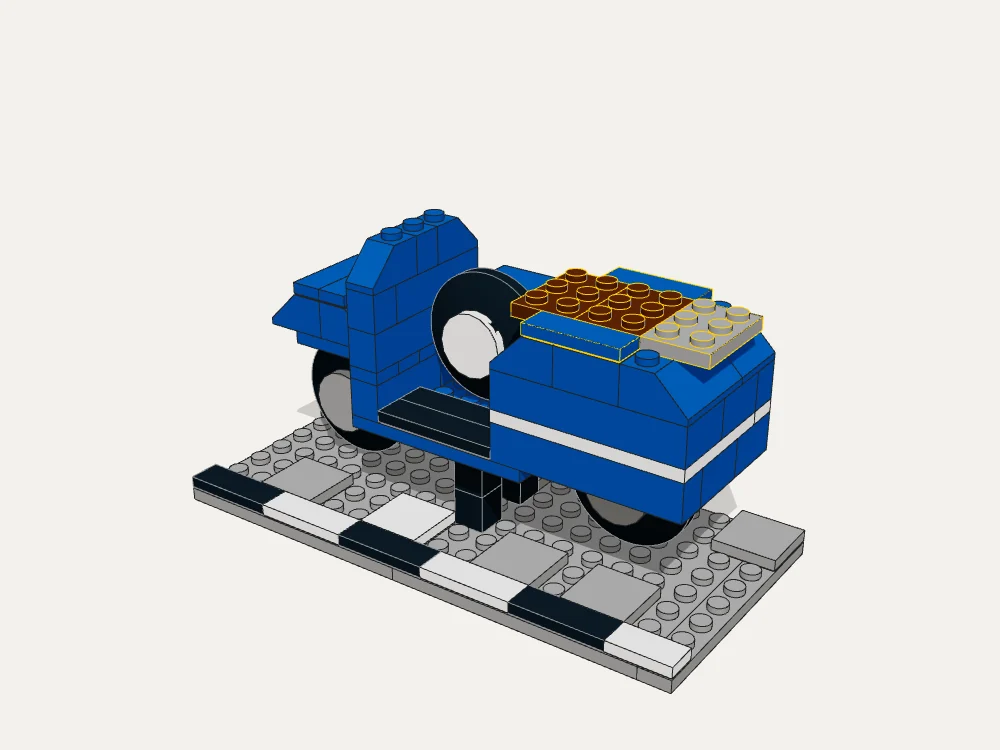

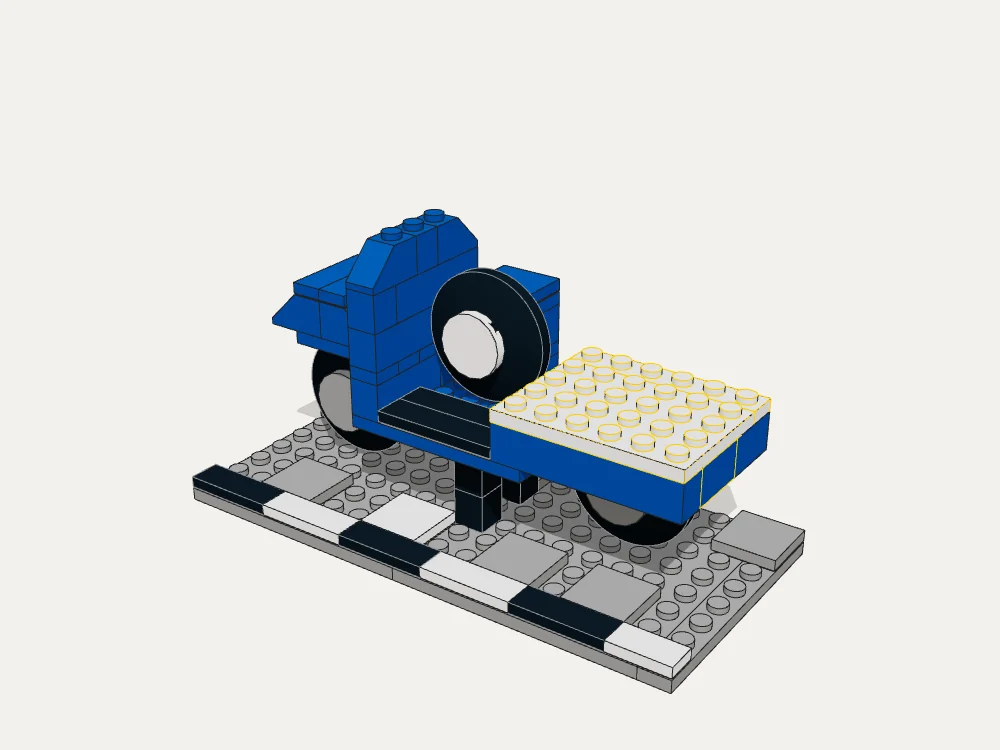

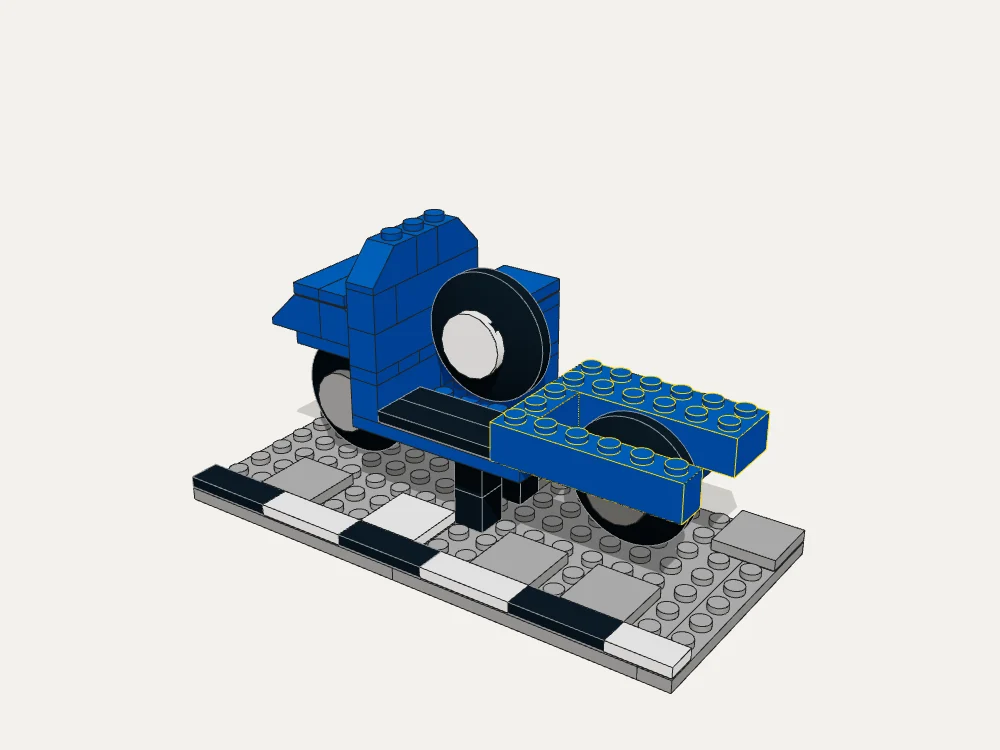

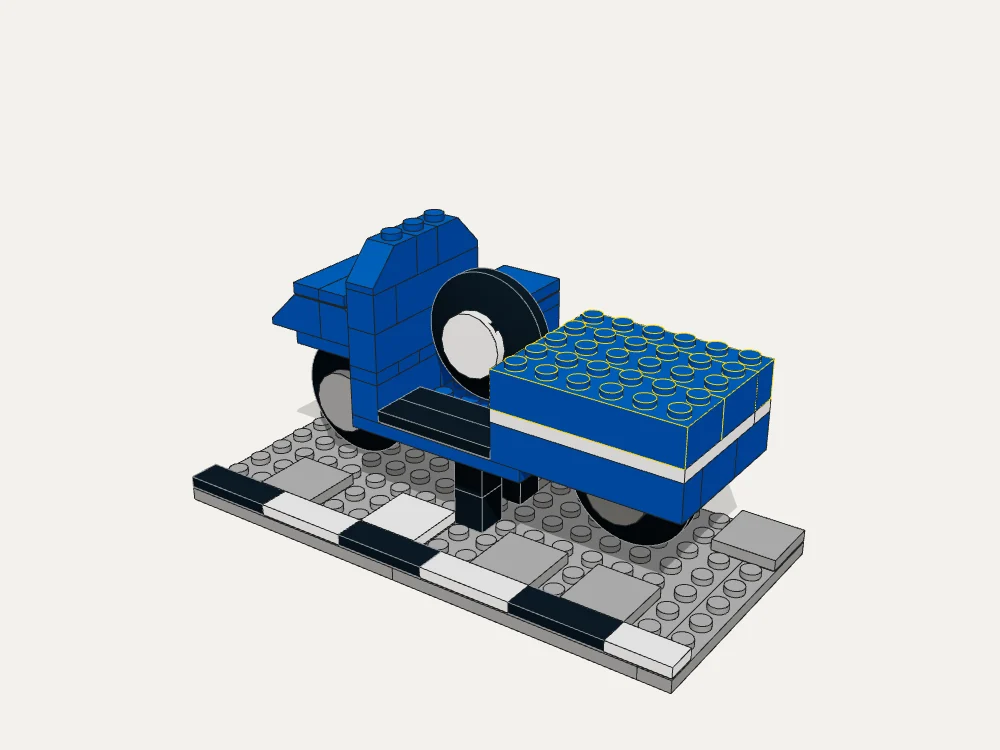

- Rear body: the 1×6 skirt brick on the viewer's side hangs from the white plate. Before attaching the plate, secure the skirt by its front stud only.

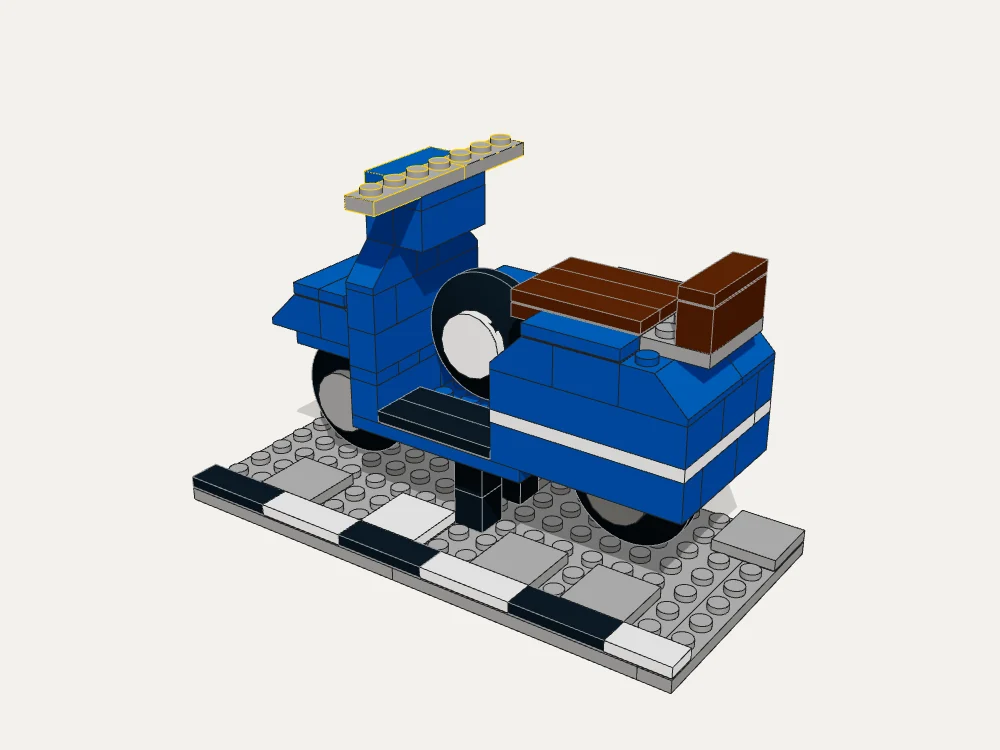

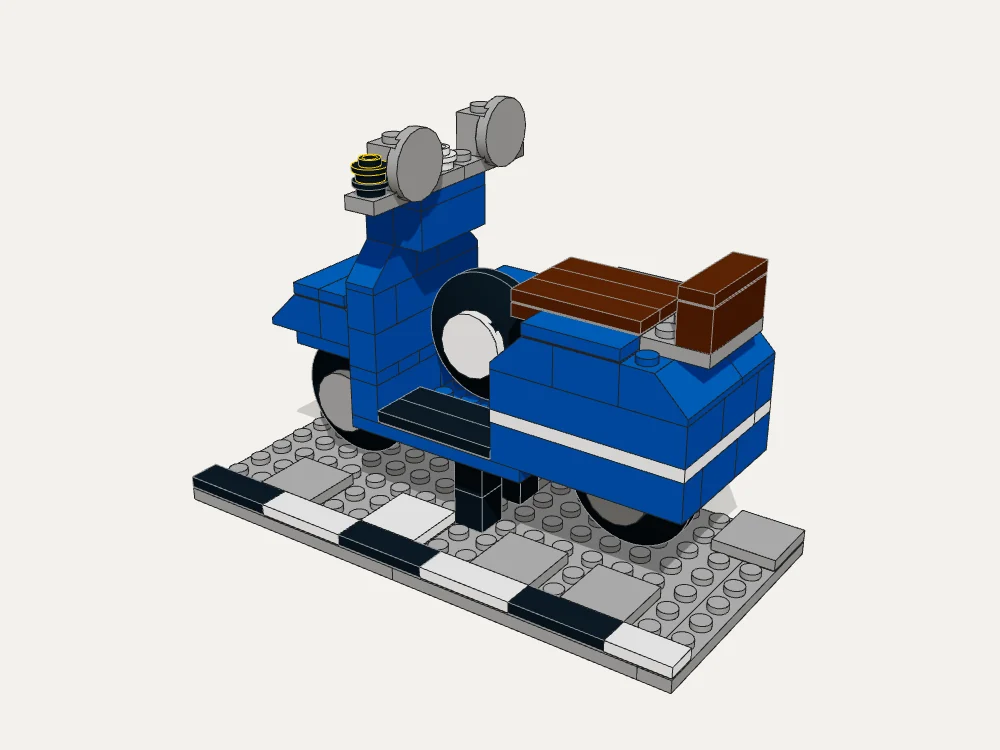

- Handlebar: sits on top of the shield shoulders. The 1×3 brick in the rear row hangs from the 2×3 plate on top.
- The modules fit together with studs. The rear body and handlebar can be separated by pulling them upward.
- PARTS
- 103
- MODULES
- 5
- HEIGHT
- ~10 cm
- COLOURS
- 5
- PLATES
- 5
- PRINT TIME
- ~11 h
3MF is a ready Bambu Studio project. STL.zip has one folder per colour.
downloads
01 / MODULES
- 01
Base
17×8 sidewalk. It consists of two 8×8 plates and one 1×8 plate, joined together by black-and-white curb stones and 2×2 tiles.
- 02
Chassis

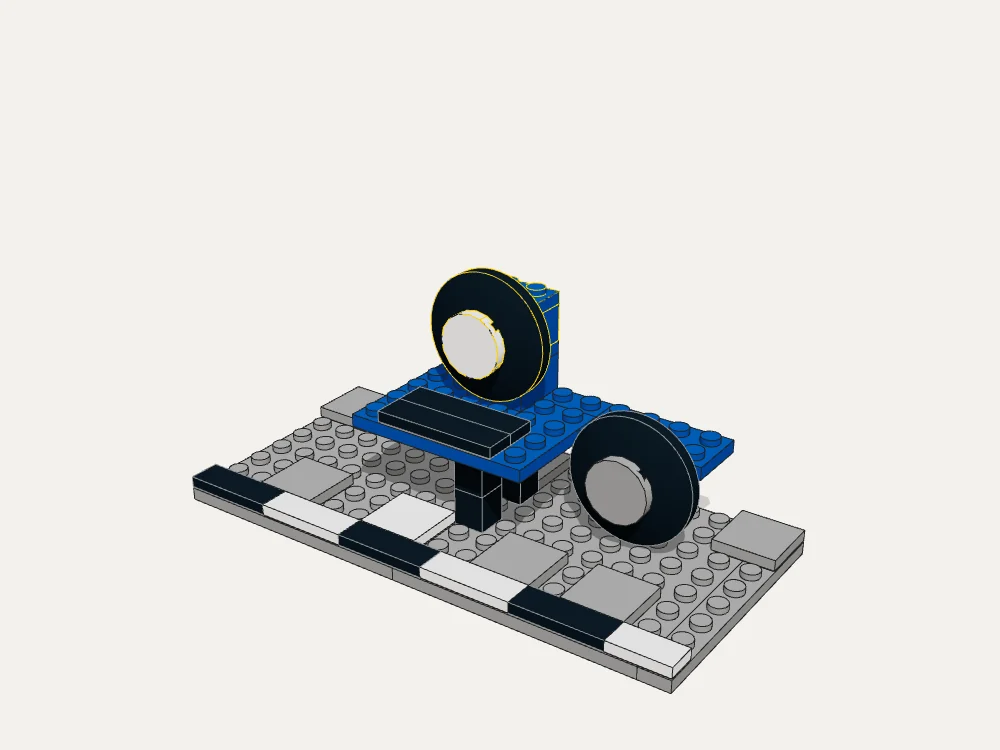

U-shaped black center stand, blue footboard plates, and black rubber floor mat strips. The rear wheel and the upright spare wheel on the footboard (with a white rim) are also part of this module, together with the spare wheel's support column.
- 03
Front Shield
Front shield 5 studs wide. The fender arm that locks into it, the fender dome built from slopes, the fork column, and the front wheel are in this module.
- 04
Rear Body

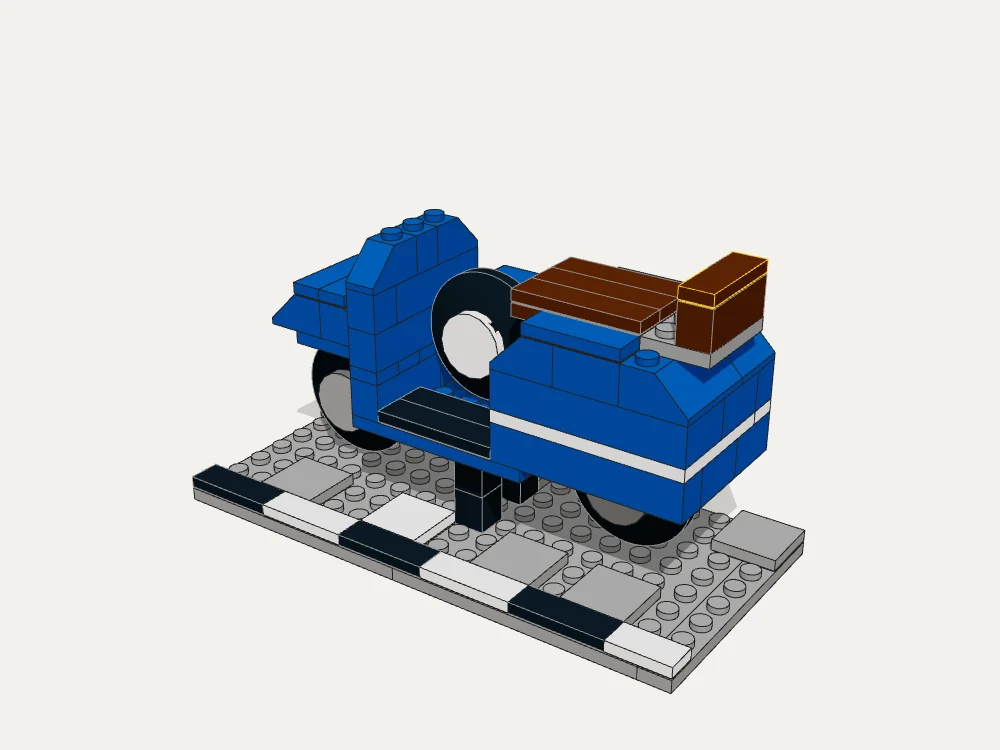

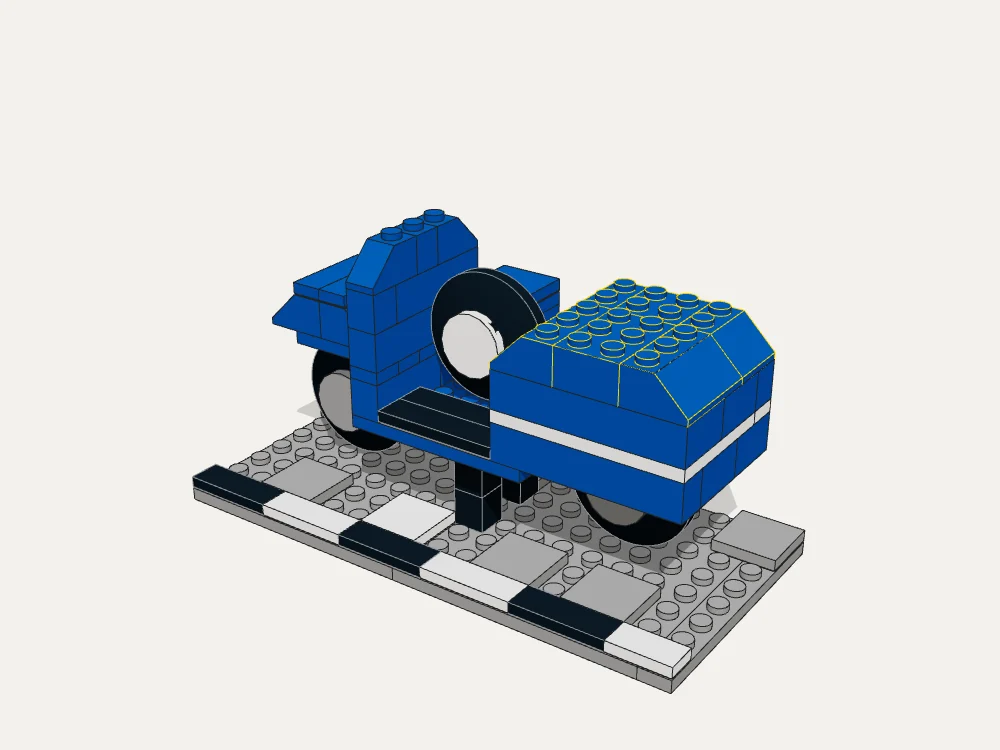

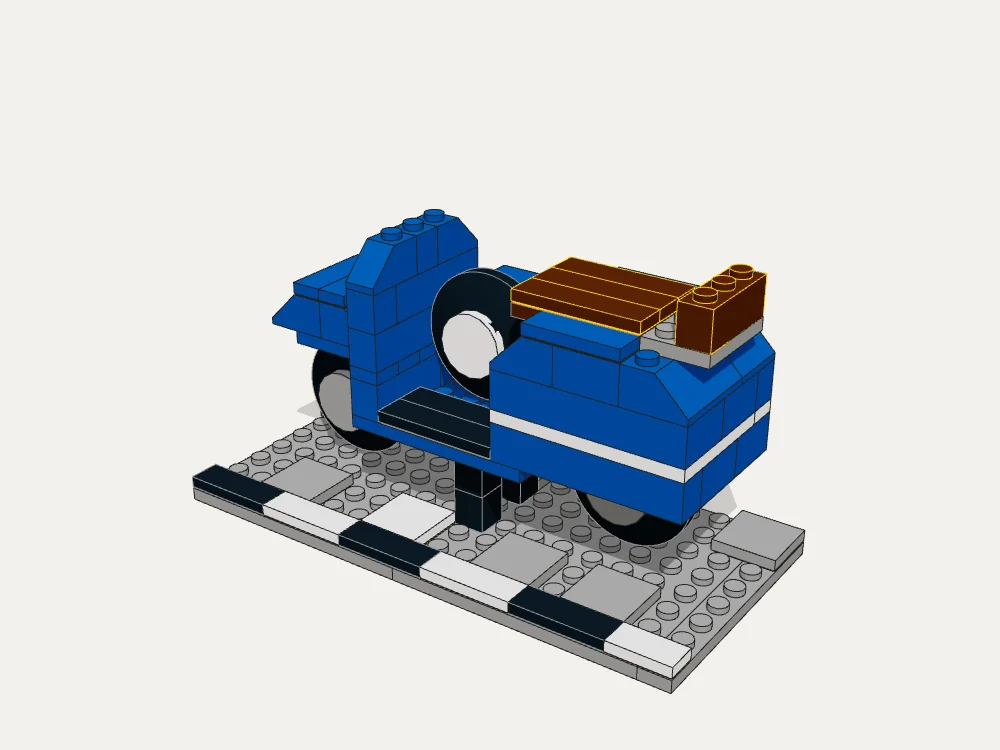

Side panel skirt, white body stripe, curved panels with 45° slopes at the front and back, brown seat, gray luggage rack, and brown bag.
- 05

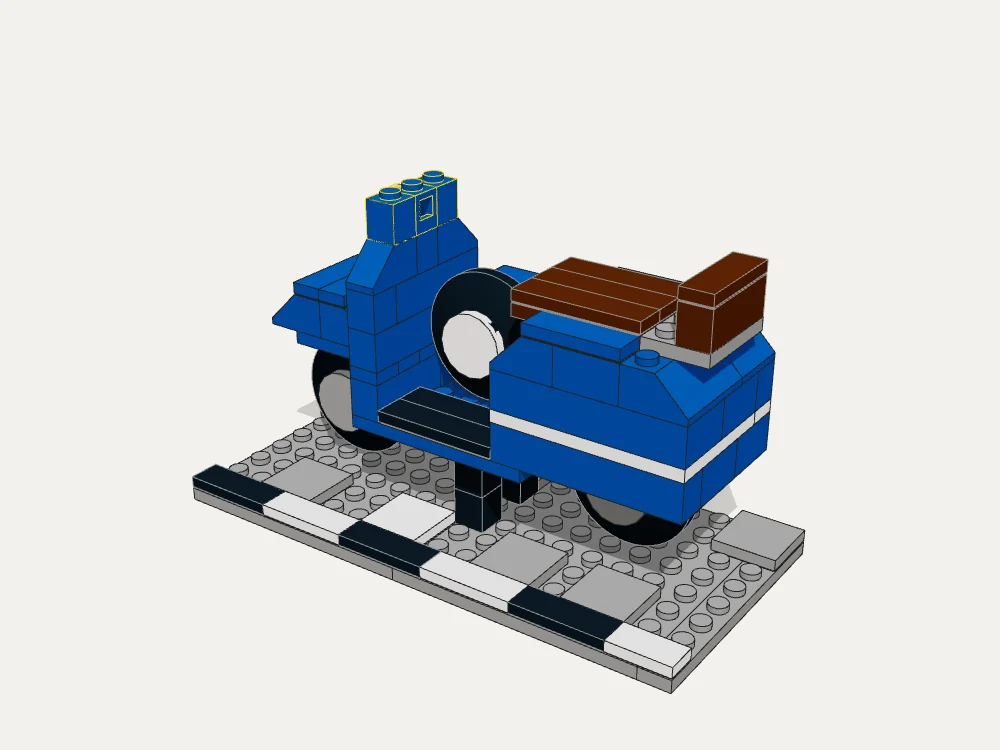

Handlebar
Handlebar head with headlight (white headlight lens), gray handlebar, black hand grips, white speedometer, and two round mirrors facing the rider.
02 / PART LIST
| Part | Colour | Qty |
|---|---|---|
| Tile 2x2 Round with Round Underside Stud | Light Grey | ×4 |
| Plate 2x3 | Light Grey | ×1 |
| Tile 2x2 with Groove | Light Grey | ×6 |
| Plate 1x8 | Light Grey | ×1 |
| Plate 1x3 | Light Grey | ×1 |
| Plate 1x4 | Light Grey | ×1 |
| Plate 8x8 | Light Grey | ×2 |
| Brick 1x1 with Stud on 1 Side | Light Grey | ×2 |
| Tile 2x2 Round with Round Underside Stud | White | ×1 |
| Plate 4x6 | White | ×1 |
| Tile 2x2 with Groove | White | ×2 |
| Tile 1x2 with Groove | White | ×1 |
| Plate 1x6 | White | ×1 |
| Tile 1x3 | White | ×2 |
| Plate 1x1 Round with Open Stud | White | ×2 |
| Tile 1x4 with Groove | Reddish Brown | ×3 |
| Plate 2x3 | Reddish Brown | ×2 |
| Brick 1x3 | Reddish Brown | ×1 |
| Tile 1x3 | Reddish Brown | ×1 |
| Brick 2x6 | Blue | ×3 |
| Brick 2x3 | Blue | ×1 |
| Brick 2x2 | Blue | ×2 |
| Brick 1x2 | Blue | ×6 |
| Brick 1x1 | Blue | ×4 |
| Brick 1x6 | Blue | ×2 |
| Brick 1x4 | Blue | ×1 |
| Plate 2x4 | Blue | ×2 |
| Plate 2x3 | Blue | ×1 |
| Plate 2x2 | Blue | ×2 |
| Plate 1x2 | Blue | ×1 |
| Plate 1x1 | Blue | ×2 |
| Plate 4x6 | Blue | ×1 |
| Slope Brick 45 2x3 | Blue | ×4 |
| Slope Brick 45 2x2 | Blue | ×2 |
| Slope Brick 45 2x1 | Blue | ×2 |
| Tile 2x2 with Groove | Blue | ×1 |
| Brick 1x3 | Blue | ×3 |
| Plate 1x6 | Blue | ×1 |
| Plate 1x4 | Blue | ×1 |
| Brick 1x1 with Headlight | Blue | ×1 |
| Tile 1x3 | Blue | ×5 |
| Brick 1x2 with Centred Stud on Long Side | Blue | ×3 |
| Tile 1x4 with Groove | Black | ×2 |
| Brick 1x1 | Black | ×4 |
| Plate 1x3 | Black | ×1 |
| Dish 4x4 Inverted | Black | ×3 |
| Tile 1x3 | Black | ×3 |
| Plate 1x1 Round with Open Stud | Black | ×4 |
